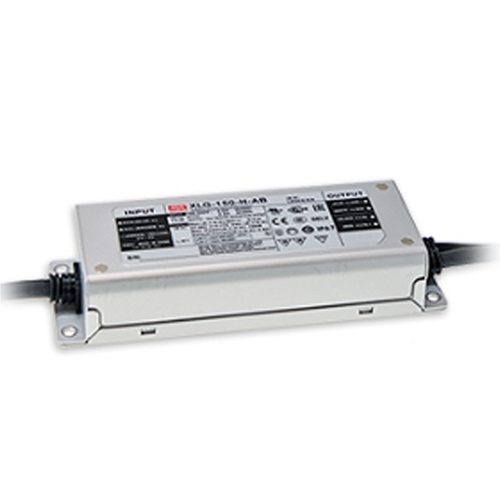

150W 12Vdc 12.5A IP67

RRP: $161.50 ^+GST

RRP: $161.50 +GST
Price: $161.50 ^+GST

Code: 2101201

Stock: Out of stock

If quantity required exceeds stock on hand, please contact us.

Features

Wide input range 100~305VAC(Class Ⅰ)

Full power output at 70~100% Constant power mode operation

Metal case with IP67,suitable for outdoor application

Class 2 power unit (only for 24V type)

Surge protection with 6KV/4KV (10KV/6KV optional)

3 in 1 dimming function (Dim to off and Isolation design)

India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Protection functions:OVP/SCP/OCP/OTP

Life time ＞50000 hrs.and 5 years warranty

AC input voltage range	100~305VAC 142~431VDC（please refer to "STATIC CHARACTERISTIC"section）
AC inrush current	cold start 50A(twidth=500μs,measured at 50% Ipeak) at 230VAC;Per NEMA 410
Over current protection	95~108% Hiccup mode or Constant current limiting ,recovers automatically after fault condition is removed
Over voltage protection	12V:13.5~18V, 24V:27~34V Shut down output voltage,re-power on to recover
Short circuit protection	Hiccup mode, recovers automatically after fault condition is removed
Over temperature protection	Shut down output voltage ,recovers automatically after fault condition is removed
Input over voltage protection	320~390VAC（Shut down output voltage when the input voltage exceeds protection voltage) can survive input voltage stress of 440Vac for 48 hours
Setup, rise, hold up time	500ms,100ms/230VAC 1200ms,100ms/115VAC;10ms/115VAC，230VAC
Withstand voltage	I/P-O/P:4.2KVAC I/P-FG:2.1KVAC O/P-FG:1.5KVAC
Working temperature	Tcase=-40~+90℃（Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Safety standards	UL8750(type "HL"),UL879,CSA C22.2 No.250.13-12;ENEC EN61347-1 ,EN61347-2-13 independent,EN62384; GB19510.1,GB19510.14;EAC TP TC 004;IP67 approved
EMC standards	EN55015（CISPR15）;EN61000-3-2,3;EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	180x63x35.5mm
Packing	0.8Kg,16pcs/13.4Kg/0.67CUFT
