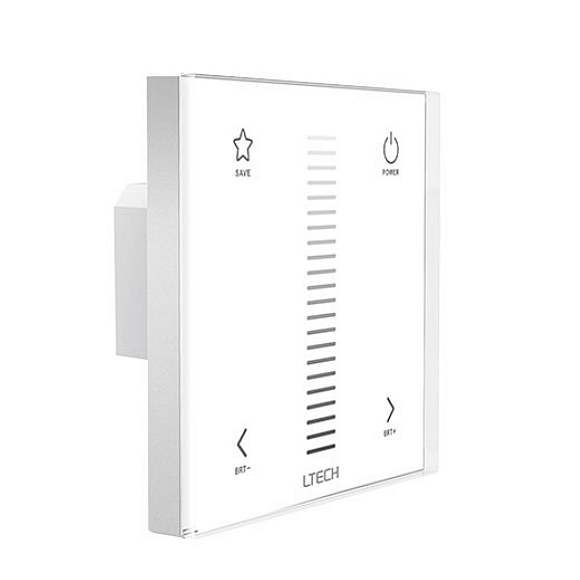

E1 Dimming European-style Touch Panel LTECH LED Controller

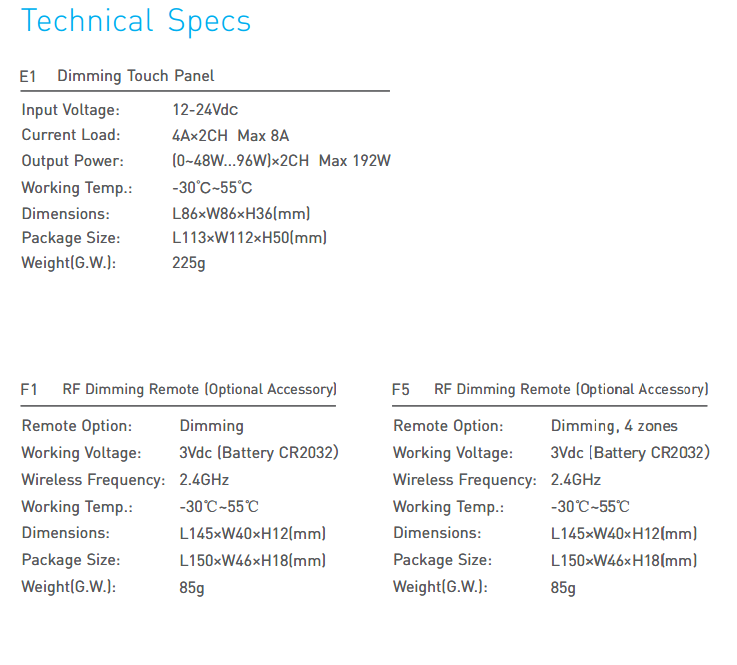

Specifications:

E1 Dimming European-style touch panel

Input Voltage 12-24Vdc

Current Load 4A×2CH Max 8A

Output Power (0~48W...96W)×2CH Max. 192W

Working Temp. -30℃～55℃

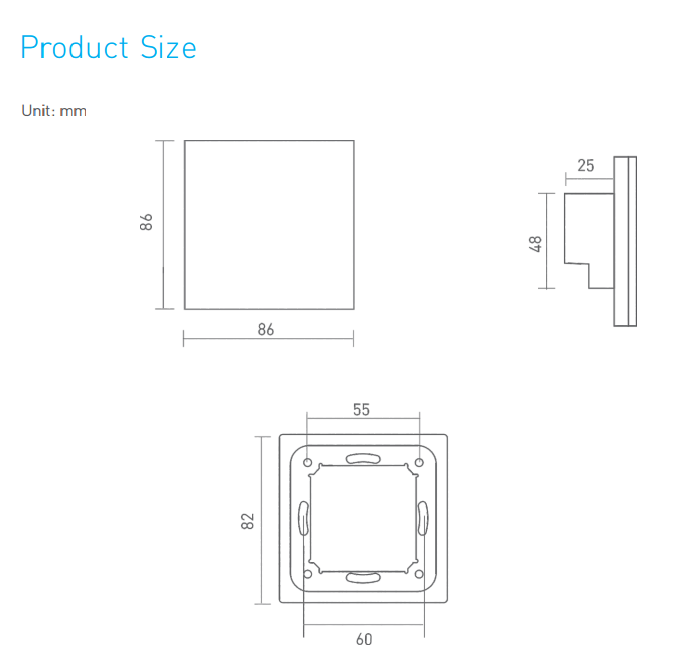

Dimensions L86×W86×H36(mm)

Package Size L113×W112×H50(mm)

Weight(G.W.) 225g

Package Include:

1 Piece of E1 Dimming European-style Touch Panel LTECH LED Controller
