| Order Code | HLG-320-24 |
| Brand | Mean Well |
| Output Voltage | 24V |
| Rated Current | 13.34 A |
| Power Rating | 320 W |
| Series | HLG Series |
| Operation Mode | Constant Voltage |
| Dimming Control | None |
| Waterproof | IP67 |
| Input | 90V~305V |
| Operating Temp. | -40°C~90°C |
| Dimensions | L252mm*W90mm*H43.8mm |
| Warranty | 7 Year |
| Standards Met | CB, CCC, CE, EAC, PSE, RCM, TUV, UL |

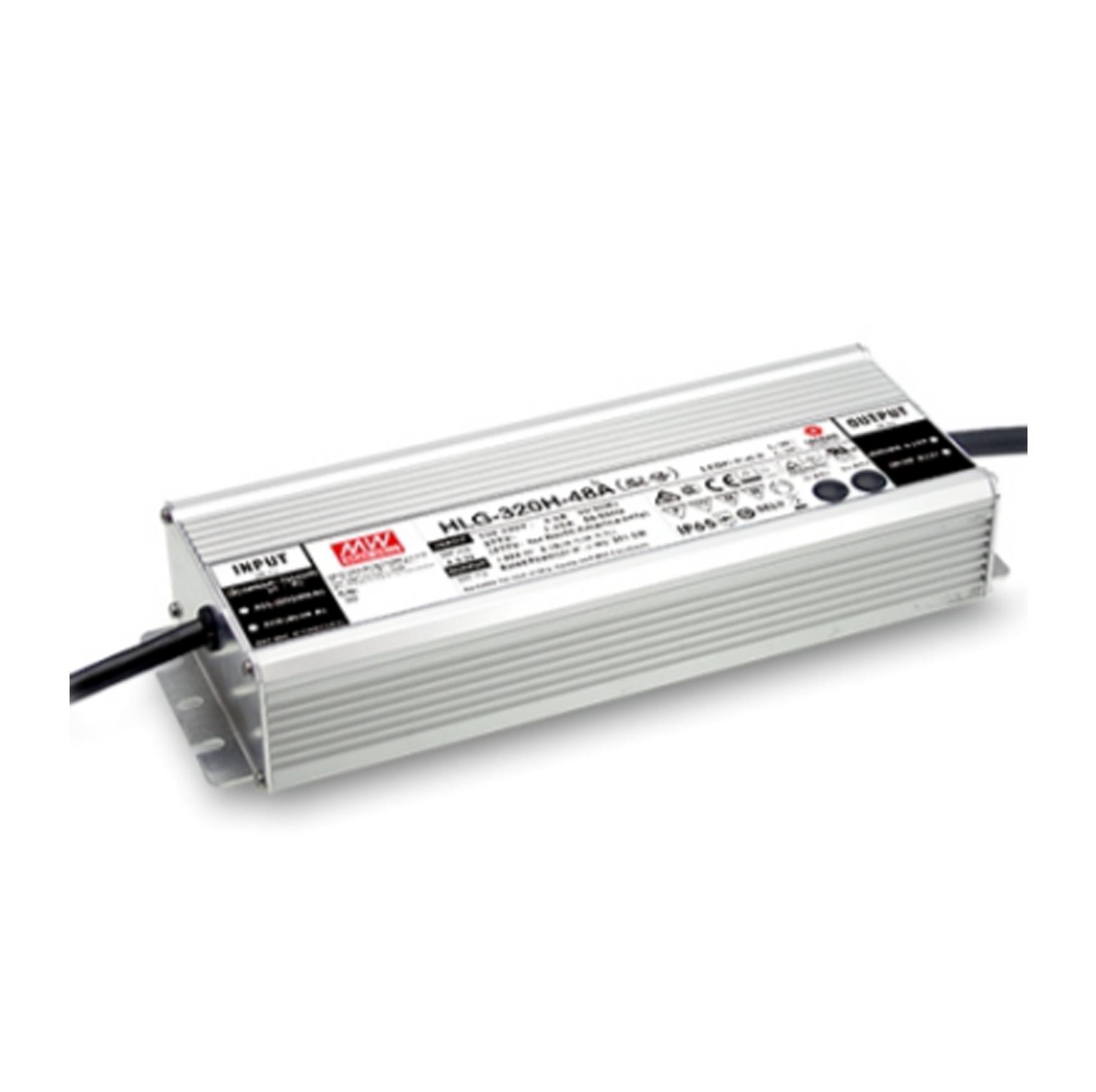

HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage output. HLG-320H operates from 90 — 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C — +90°C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
